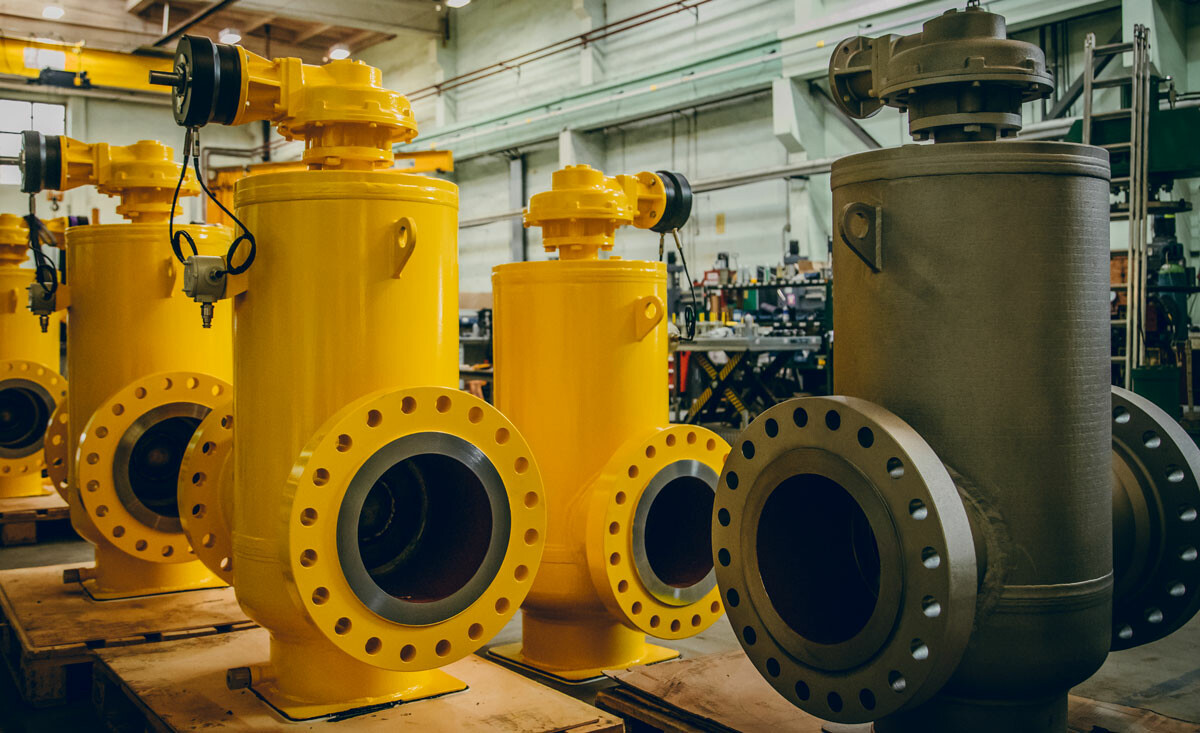

Wedge gate valves

We manufacture wedge gate valves of forged-welded construction.


General information

  • ZWK type wedge gate valves are of forged-welded construction with metal-to-metal sealing.
  • They have flanged or weld-on connections.
  • Available diameters: DN50 ÷ DN300.
  • Pressure range: PN16 ÷ PN150 (ANSI 150 ÷ 900).
  • Temperature range: -30 ÷ + 60°C (special designs are also possible).
  • Medium: natural gas (special designs also possible).
  • They demonstrate outstanding reliability and durability due to the metal-to-metal seal.
  • As standard, they are manufactured in Class C Airtightness in accordance with EN 12266-1.
  • Airtightness in class A possible on request.


  • Wedge gate valves of our production can be used both to cut off and to periodically throttle the flow of the operating medium. They are mainly used in natural gas bypass and relief systems.
  • Due to the range of diameters and pressures available, they have a wide range of applications in:
    • gas transmission pipelines
    • block and bleeed systems
    • other technological installations

Our products meet the latest technical requirements of the Gas Transmission Operator GAZ-SYSTEM S.A.


Quality documentation

  • PN-EN ISO 9001:2015 certificate
  • PN-EN ISO 3834-2:2005 certificate
  • PED certificate H module
  • fire resistance according to EN ISO 10497:2010 and API 6FA:2008
  • helium test according to EN ISO 15848-1 (Fugitive Emission Certificate)


Depending on the size and customer requirements, ball gates can be fitted with:

  • manual gearboxes
  • position indicator
  • electric actuators
  • limit switches
  • lock against unwanted overdriving
  • transport lugs
  • support feet

Corrosion protection coatings

  • As a standard, above-ground wedge gate valves are protected by spray-painting using electrostatic spray technology, depending on the corrosivity category in accordance with C4 or C5 and in accordance with EN ISO 12944-2.
  • The underground gate valve can be PUR-coated and tested in accordance with EN10290.

Special designs

  • Special temperature ranges on request.
  • Special corrosion protection coatings according to customer specifications, on request.
  • At B536 request, we manufacture gate valves in special design and material versions, e.g. stainless steel or NACE-certified material MR0175.
  • We also manufacture valves, taking into account specific customer requirements, such as final pressure and functional testing of valves or checking the quality of anti-corrosion coatings.


We will advise you and prepare solutions for your needs according to your requirements.
